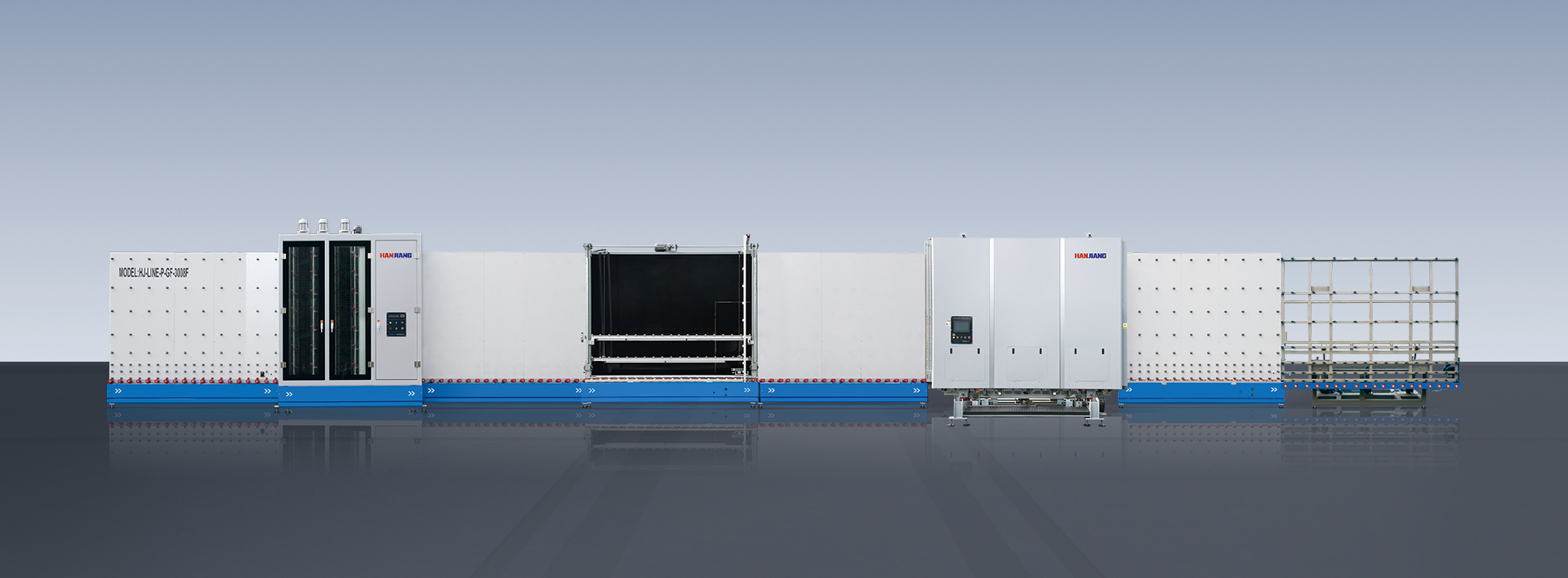

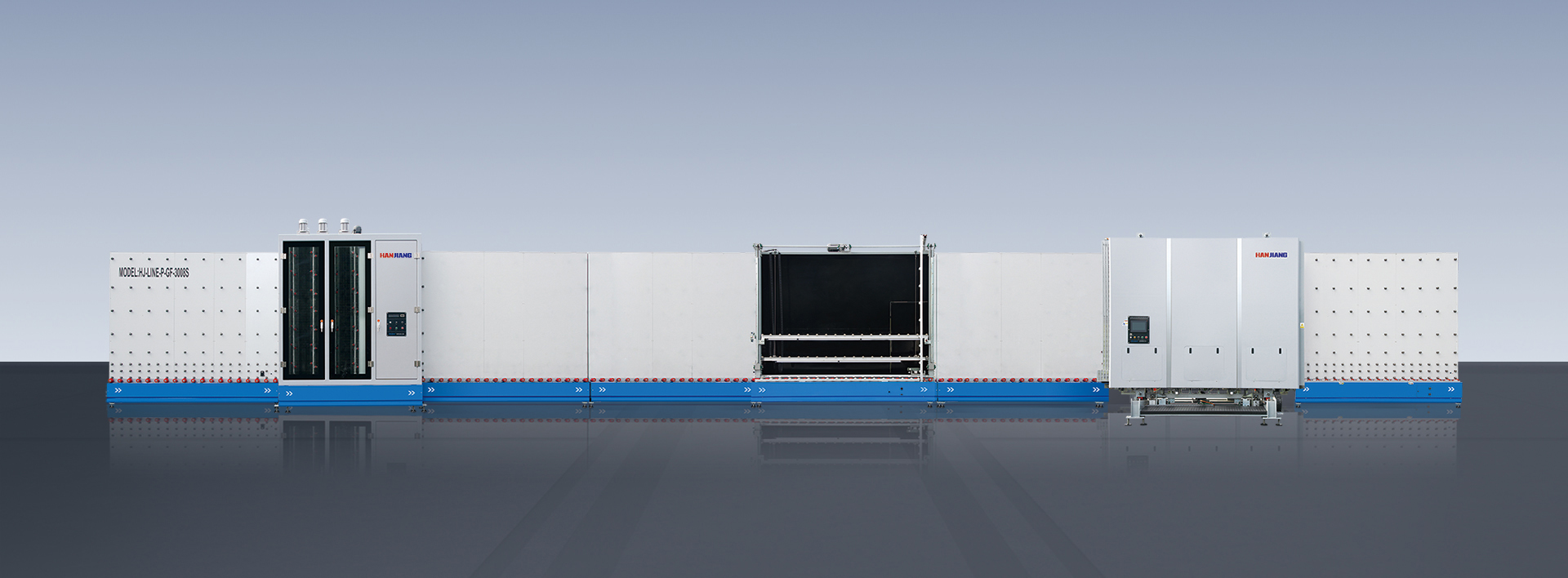

Automatic Argon Gas Filling IG Line Model:HJ-LINE-IP-GF
Automatic Argon Gas Filling IG Line Model:HJ-LINE-IP-GF
Introduction of automatic Argon gas filling IG line
Automatic Argon gas filling IG line can fill Argon gas into insulated glass or double glass or multi later IGU in press machine without destruct of rigid or warm edge spacers. With superior gas filling performance, IG line can detect glass size, thickness and spacer thickness automatically and create unique gas filling chamber for insulated glass to maximize utilization of gas.

Feature

  • PLC control system with touch screen interface
  • Perfect washing performance for on/off line Low-E glass
  • Air knives automatic adjustment according to the thickness of glass
  • Optimal energy saving system with numerical intermittent working style
  • Inverter driving for Low-E brush rotatory speed
  • Automatic positioning system for spacer frame(*option)
  • Automatic checking system for glass dimension and thickness ; Adjust optimal closed chamber automatically to achieve superior gas filling efficiency and minimum gas consumption
  • Automatic positioning system for glass
  • Servo and Torque driving system for accurate pressing
  • High-tech press machine apply 3 or 4 axis linkage servo system; Accurate and efficient assembly-gas filling-press function
  • Automatic and accurate assembly for triple IG processing and selective function for gas filling
  • Ensure the argon content ≥85% (GB/T11944-2012 new national standard of China)
  • Automatically accurate positioning for 3 or 4 side step IG with gas filling
  • Remote communication function (*option)

Technical Data

  • Max glass size 2500×3000mm (2000×2500mm)
  • Min glass size 300 × 450mm
  • Insulating glass thickness 10-48 mm
  • Washing glass thickness 3-19mm
  • Washing speed 0-10m/min
  • Low-E brush 6 units (3 units for Low-E)
  • Conveying speed 45 m/min Press suction: 6kg/EA
  • Filling time 3-5seconds (900×1200mm)
  • Environment temperature 7-50℃
  • Power 3P 380V/1P+N 220V 50Hz 38kW
  • Air source Air quantity: 0.8m3/ min Air pressure: 0.7MPa
  • Water conductivity ≤30μs/cm
Customized IG line- insulated glass processing size
  • 1500 Series

    1500 × 2000mm

  • 2000 Series

    2000 × 2500mm

  • 2500 Series

    2500 × 3600mm / 2500 × 4000mm / 2500 × 5000mm / 2500 × 6000mm / 2500 × 7200mm / 2500 × 8000mm / 2500 × 9000mm / 2500 × 12000mm

  • 3000 Series

    3000 × 3600mm / 3000 × 4000mm / 3000 × 5000mm / 3000 × 6000mm / 3000 × 7200mm / 3000 × 8000mm / 3000 × 9000mm / 3000 × 12000mm

  • 3300 Series

    3300 × 3600mm / 3300 × 4000mm / 3300 × 5000mm / 3300 × 6000mm / 3300 × 7200mm / 3300 × 8000mm / 3300 × 9000mm / 3300 × 12000mm

  • Insulating Glass Type

    Types of insulated glass or double glass or multi later IGU

     Double glazing
     Double glazing with gas filling
     Triple glazing
     Triple glazing with single layer gas filled
     Triple glazing with double layer gas filled
     One side step
     Two side step
     Three side step
     Four side step
    Application Area
    Architectures

    Window & Door, Curtain wall

    01
    Transportation tools

    High-speed rail glass, side window

    02
    Home appliance

    Refrigerator glass

    03
    Solar glass

    Solar glass

    04
